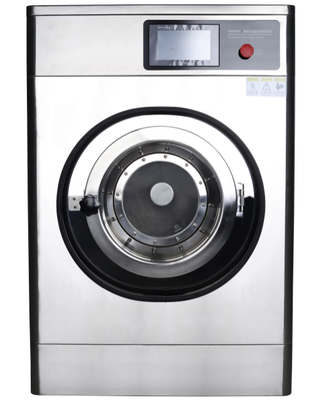

ISO 6330 Type A Washing Machine (front door loading, horizontal drum type)

SL-F32A Automatic Shrinkage Washing Machine

Scope of application

It is used for the dimensional stability test of fabrics, garments or other textiles after washing.

Related standards

GB/T 8629, ISO 6330, BS 4923, M&S, FZ/T 70009, GB/T 8630, ISO 5077, EN 25077, JIS L909, IWSTM31, etc.

Instrument characteristics

► Durable and exquisite

The whole machine is made of high-grade stainless steel both inside and out, with an industrial structure design, which is beautiful, exquisite and durable.

► High anti-shock and ultra-quiet

Independent suspended drum technology, high anti-shock performance, ultra-quiet operation, no need for bottom foot fixation.

► Import stepless speed regulation motor

Import vector frequency conversion stepless speed regulation motor, high-speed dehydration speed, digital setting.

► Color screen touch control

High-definition color touch screen control, Chinese and English menus, human-computer dialogue mode, convenient operation.

► Import single-chip microcomputer

Import 32-bit industrial-grade single-chip microcomputer intelligent control, ensuring long-term stable operation.

► Fast heating speed

The temperature control adopts PID algorithm, with fast heating speed and small control fluctuation.

► Built-in program setting

Built-in standard programs such as GB/T 8629-2017/2001, ISO 6330, GB/T17596, GB8965.1, etc., and multiple self-programmable programs, manual single programs, with a maximum of 99 cycles of washing.

Technical parameters

- Instrument category: Type A washing machine (front door loading, horizontal drum type)

- Mechanical structure:

  Inner drum diameter: (520 ± 1) mm

  Inner drum depth: (315 ± 1) mm

  Outer drum diameter: (554 ± 1) mm

  Lifters: 3 pieces (circularly distributed, evenly spaced at 120° intervals), extending throughout the entire depth of the inner drum

  Lifter height: (53 ± 1) mm

- Rotation mode:

  Normal rotation action - clockwise/counter-clockwise for (12 ± 0.1) seconds, pause for (3 ± 0.1) seconds

  Moderate rotation action - clockwise/counter-clockwise for (8 ± 0.1) seconds, pause for (7 ± 0.1) seconds

  Gentle rotation action - clockwise/counter-clockwise for (3 ± 0.1) seconds, pause for (12 ± 0.1) seconds

- Speed settings: 52 r/min during washing, low-speed spin (500 ± 20) r/min, high-speed spin (800 ± 20) r/min

- Filling time: Fill to a height of 130 mm in less than 2 minutes, water supply flow rate (20 ± 2) L/min (the water supply pressure at the inlet should be higher than 150 kPa)

- Drainage speed: > 30 L/min

- Heating power: 5.4 (1 ± 2%) kW

Temperature detection: temperature sensor, digital setting range: room temperature ~99±1℃, resolution 0.1℃

- Rated loading capacity: 5 kg

- Water level control: 100 mm/130 mm, etc. (customizable other water levels), water level tolerance ≤ 3 mm

- Power supply: AC 220V ± 10% 50Hz 6.5kW

- Dimensions: (800 × 750 × 1180) mm (L × W × H)

- Instrument weight: Approximately 180 kg
