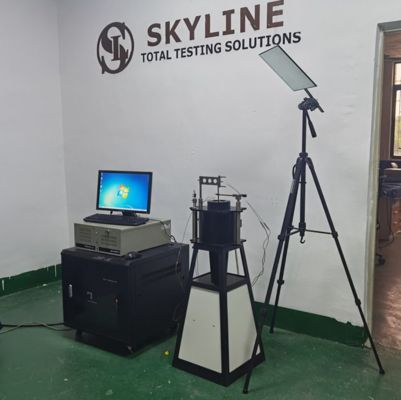

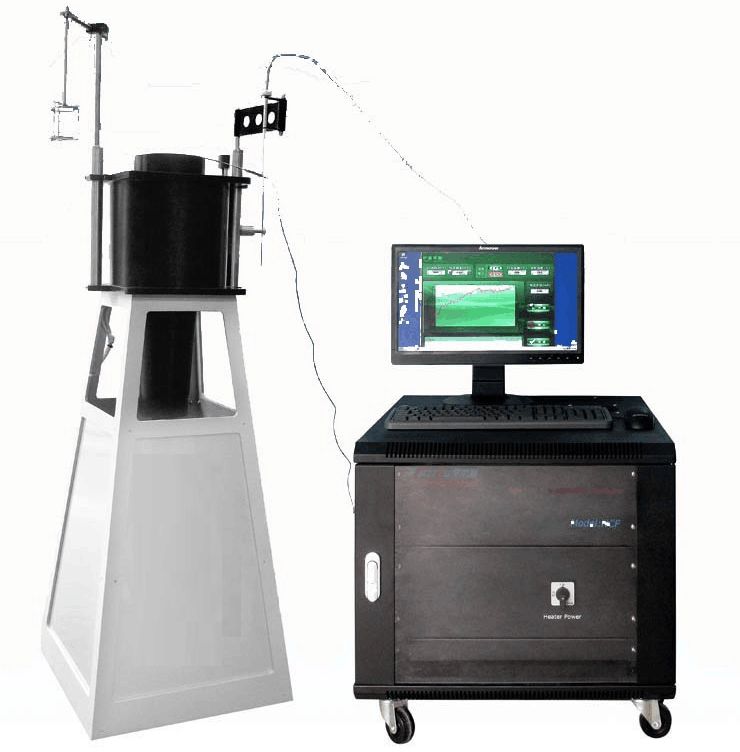

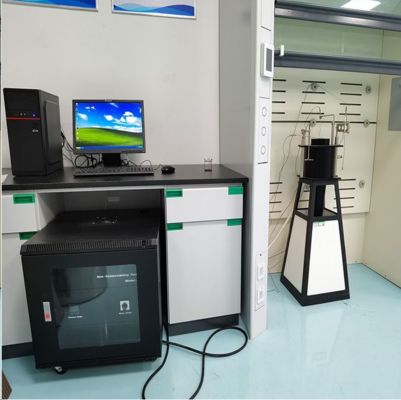

ISO 1182 Non Combustibility Test Apparatus 900 ℃ Max Temperature

The EN ISO 1182 Non-combustibility test is part of the Euroclass test standards series. This procedure determines whether a material contributes directly to fire development, relevant for classifying all building products (including floorings) into classes A1 and A2.

• Measures incombustibility of uniform and non-uniform building materials
• Evaluates rising furnace temperature, mass loss, and specimen ignition
• Single Zone Furnace operates up to 900℃ with Kanthal Ribbon Heater
• Precise 750±5℃ temperature control via PID and Power controller
• Stabilized voltage supply for rapid temperature stabilization
• Three thermocouples monitor furnace, specimen center, and surface temperatures
• 360° rotatable, height-adjustable thermocouple scanning device
• Inner furnace thermocouple for temperature calibration

• Airflow stabilizer: 500mm height truncated cone (75mm top diameter, 10mm bottom opening)
• Specimen holder: φ1.5mm steel wire, 46mm inner diameter, 57mm height

• Oven with fume hood
• Stand and sample insertion device
• Sample holders (2+ for solids, 2+ for bulk materials)
• Temperature control and measuring system
• Data capture and processing software

All components meet LST EN ISO 1182:2020 requirements.

• Electrical: 110V AC 60Hz / 230V AC 50Hz, 10A
• Ambient Temperature: 10°C to 35°C operating range

• Computer system with software
• OMEGA brand thermocouples
• Kanthal brand ribbon heater (Switzerland)
• Electric furnace wire
